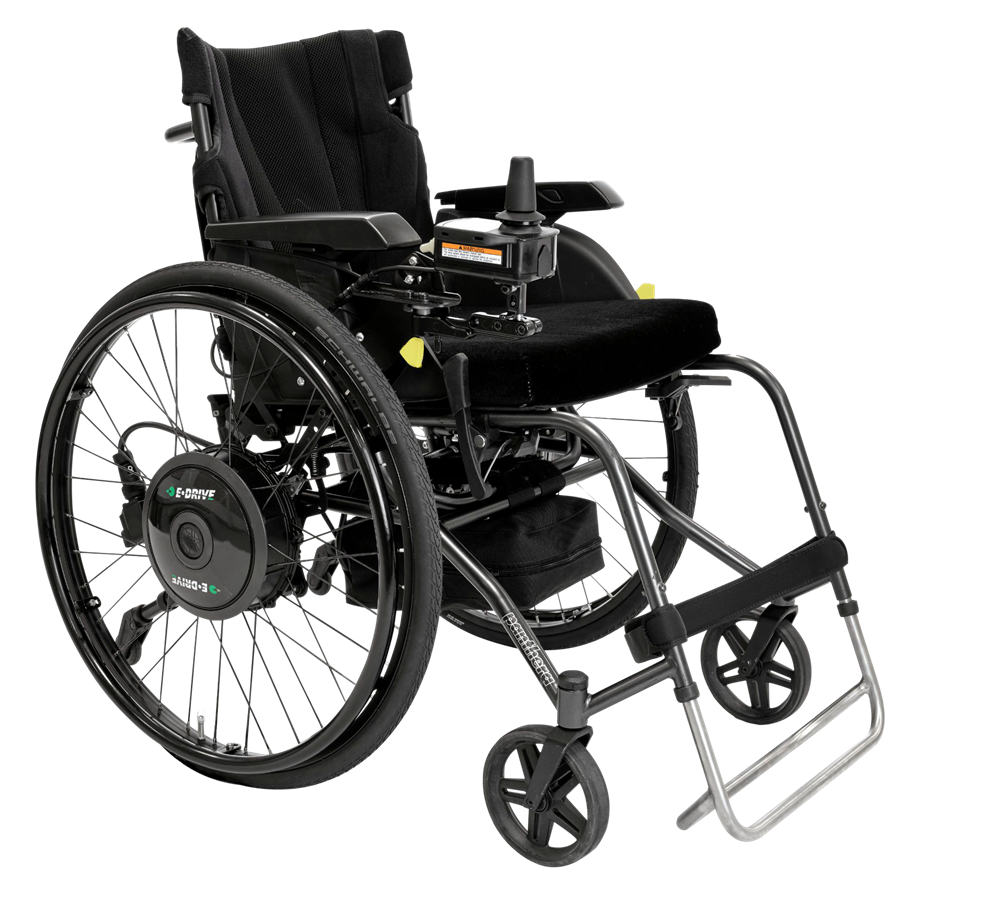

E-DRIVE™

E-Drive is a drive unit that is easily mounted on manual wheelchairs. It is equipped with hub motors of the latest technology. Here you can choose to use the engine or roll yourself. With E-Drive drive units, the opportunity is given for individual adaptation that provides quality for the user. The control is easily done with a joystick. It is also possible to equip the E-Drive with caregiver operation. E-Drive is just as suitable for use indoors as outdoors. Li-ion batteries are categorized as dangerous goods according to IATA rules. In general (with suitable Class II packaging) it is not a problem to take this battery with you in the aircraft. The user must contact the airline before travel or booking. The certificate for Li-ion battery is available on the Decon Wheels website.

The Freewheeler™ Modular™ is a one-off, full custom bespoke solution built to user-specific requirements. Seat size and posture accessories are selected from a wide range of available options. Stylite’s highly trained fabrication engineers will design, mould and fit the seat to provide the ultimate in comfort and support.

The Freewheeler™ Modular™ folds in a single-handed simple operation to a compact size of xxxx and weighing just 12kgs makes it easy to stow in the boot or back of the car. Removal and reassembly is just as simple. The Freewheeler™ is highly manoeuvrable, making it easy to get in/out of tight spaces, so going shopping or to the local pub is never an issue!

Although manual as standard, there are a number of options available for powering the Freewheeler™ Modular™. Simply install either the E Move or E Drive power assemblies and select from various drive control options to optimise your independence and control.

Powerful Motor Support: Effortlessly navigate slopes, long distances, and diverse terrains.

Customisable Experience: Adjust speed, turning sensitivity, and driving modes.

Strong and Reliable: Supports up to 150 kg, providing stability and confidence.

Long Battery Life: Travel up to 16 km on a single charge with the lithium-ion battery.

Smart Control: Intuitive joystick with a sunlight-readable display and caregiver control options.

Indoor and Outdoor Ready: Adaptable for various environments, ensuring freedom and flexibility.

Engine 24V 120Wx2
Battery type Nickel metal hybrid, 24Vx6,7 Ah (optional L i-ion, 25Vx11,8Ah)
Weight wheel (1pcs.) 7 kg
Total weight 16 kg (incl NiMH battery) , 17,5 kg (incl Li-iON battery)
Increase seat width Up to 4 cm (total)
Wheel dimensions 16”, 20”, 22”, 24”, 25”, 26”
Air pressure 6 Bar, 600 kPa
Speed 0-6 km/h
Max range (with fully charged battery) 24″: ca NiMH 16 km, Li-ion ca. 30km            16″: 15 km NiMH, 25 km Li-ion
Fuse 30 A (flat)
Max user weight Up to 125 kg
Max userweight “Heavy-duty” Up to 150 kg
Max gradient 6 degrees
CE marking In compliance with MDR 2017/745 class 1
User instructions See user manual
Joystick Contactless sensing of single-chip
Lever resistance change Lever springs with different resistance levels
USB Port for phone charging Through integrated USB port (5V, 500 mA max.)
Display LCD (Visible in sunlight)
Program parameters Joystick or computer (Smart Tune)
Battery charger 100 to 240V AC, 50/60Hz
Power rating 37V. 26A (while charging)
Charging time Normal charging ca. 2-3 hours

E-DRIVE Weight

Power add-on: 15 kg

Battery: 4 kg

Battery bag: 1 kg

Maximum total weight: 184 kg
